Question

If the magnetic dipole moment of an atom of diamagnetic material, paramagnetic material and ferromagnetic material are denoted by $${\mu _d},{\mu _p}$$  and $${\mu _f}$$ respectively, then

A. $${\mu _d} \ne 0\,{\text{and}}\,{\mu _f} \ne 0$$
B. $${\mu _p} = 0\,{\text{and}}\,{\mu _f} \ne 0$$
C. $${\mu _d} = 0\,{\text{and}}\,{\mu _p} \ne 0$$
D. $${\mu _d} \ne 0\,{\text{and}}\,{\mu _p} = 0$$
Answer :   $${\mu _d} = 0\,{\text{and}}\,{\mu _p} \ne 0$$
Solution :
In diamagnetic substances, in each pair of electrons, the spin of both the electrons are in opposite directions. Hence, the electrons of each pair completely cancel the magnetic moment of each other. Thus, the net magnetic moment of each atom of such substances is zero, i.e. $${\mu _d} = 0.$$

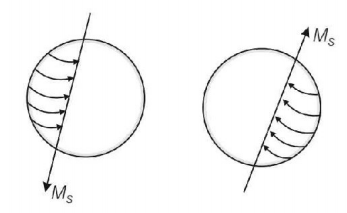

Magnetic Materials mcq solution image
The property of para-magnetism is found in those substances whose atoms or molecules have an excess of electrons spinning in same direction.
Hence, atoms of paramagnetic substances have permanent magnetic moment i.e. $${\mu _p} \ne 0$$
The property of ferromagnetism is found in substances which acquire very strong magnetism when placed in an external magnetic field. Like the paramagnetic substances each atom of ferromagnetic substances also has a permanent magnetic moment i.e. $${\mu _f} \ne 0.$$

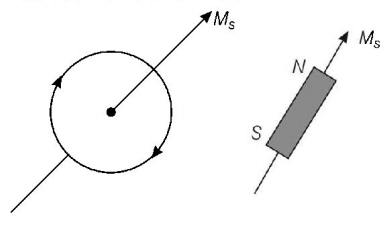

Magnetic Materials mcq solution image

Releted MCQ Question on
Electrostatics and Magnetism >> Magnetic Materials

Releted Question 1

Curie temperature is the temperature above which

A. a ferromagnetic material becomes paramagnetic
B. a paramagnetic material becomes diamagnetic
C. a ferromagnetic material becomes diamagnetic
D. a paramagnetic material becomes ferromagnetic
Releted Question 2

The materials suitable for making electromagnets should have

A. high retentivity and low coercivity
B. low retentivity and low coercivity
C. high retentivity and high coercivity
D. low retentivity and high coercivity
Releted Question 3

Needles $${N_1},{N_2}$$  and $${N_3}$$ are made of a ferromagnetic, a paramagnetic and a diamagnetic substance respectively. A magnet when brought close to them will

A. attract $${N_1}$$ and $${N_2}$$ strongly but repel $${N_3}$$
B. attract $${N_1}$$ strongly, $${N_2}$$ weakly and repel $${N_3}$$ weakly
C. attract $${N_1}$$ strongly, but repel $${N_2}$$ and $${N_3}$$ weakly
D. attract all three of them
Releted Question 4

Relative permittivity and permeability of a material $${\varepsilon _r}$$ and $${\mu _r},$$ respectively. Which of the following values of these quantities are allowed for a diamagnetic material?

A. $${\varepsilon _r} = 0.5,{\mu _r} = 1.5$$
B. $${\varepsilon _r} = 1.5,{\mu _r} = 0.5$$
C. $${\varepsilon _r} = 0.5,{\mu _r} = 0.5$$
D. $${\varepsilon _r} = 1.5,{\mu _r} = 1.5$$
